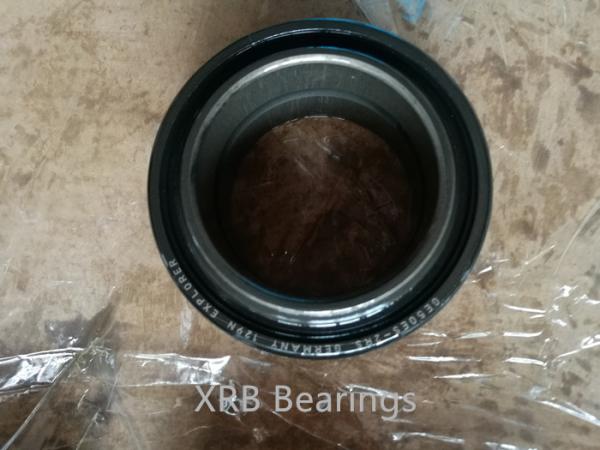

Radial Spherical Plain Bearing INA GE50ES-2RS Bearing 50×75×35mm Used In Metals

Radial Spherical Plain Bearings INA GE50ES-2RS Bearing is one kind of bearing design. But this kind of bearings are different with the most rolling bearing type we indicated . Spherical Plain Bearing are not rolling bearings that they have no cage, no steel balls or rollers. Its dimension is 50×75×35mm,weight is 0.56 kg, the material are adopt high quality chrome steel,and are through-hardened. the bearings have inner ring and outer ring, lubrication hole and groove. it can be open design ,and also can be double-lip seal or triple-lip heavy-duty seal.

Spherical plain bearing INA GE50ES-2RS Bearing are standardized, ready-to-mount, mechanical components that enable multi-directional, self-aligning movements. The inner ring has a spherical convex outside diameter, while the outer ring has a correspondingly concave inside diameter . The forces acting on the bearing may be static or may occur when the bearing makes oscillating or recurrent tilting and slewing movements at relatively low speeds .

Self-lubricating spherical plain bearing INA GE50ES-2RS Bearing are primarily intended for situations where a long life, free from maintenance and lubrication requirements, is desired. They are also used in parts of machines where lubrication would be difficult .

Spherical plain bearing INA GE50ES-2RS Bearing and rod ends are an excellent choice for applications that require total design economy. These state-of-the-art products are available in a wide assortment of designs, dimension series and sizes to meet the needs of a particular application .

Rod end

1. Spherical plain bearing

2. Rod end

2a Rod end housing

2b Rod end shank, with an external (male) thread. Shanks are also available with an internal (female) thread or with a welding shank.

3. Grease fitting

Advantages of spherical plain bearings

1. Accommodate misalignment
2. Virtually eliminate edge stresses and excessive stressing of adjacent components
3. Accommodate deformation of surrounding components in operation
4. Accommodate wide manufacturing tolerances and the use of cost-effective, welded assemblies

XRB is the China bearing manufacturer,exporter, supplier, it can supply GE50ES-2RS bearing, Our large quantity Radial Spherical Plain Bearings Stock can meet your need with good quality and fast delivery, Also you can find IKO GE50ES-2RS Bearing, the other type and brand Spherical Plain bearings and Rod End. just like NSK , FAG , NTN , NKE , ZWZ , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we asure we can ship high quality GE50ES-2RS bearing to your office at the first time.

Liaocheng Explorer Bearing Manufacturing Co.,Ltd , shorted name -- XRB Bearing. China bearings manufacturer and supplier , XRB focus on research & development and manufacturing general purpose and non-standard roller bearings , our products contains Insulated Bearing , Tapered Roller Bearings(inch & metric size) , Deep Groove ball bearing ,Sealed spherical roller bearings , Spherical roller thrust bearing , CARB toroidal roller bearings , Cylindrical roller bearings , Vibrating screen bearing , papermaking machinery bearing , concrete mixer truck bearing , excavator bearings , rolling mill bearing.
