    Single Row Tapered Roller Bearings NSK HR32207J For Machine Tool Spindles

    Ask Lasest Price
    Brand Name : NSK
    Model Number : HR32207J
    Certification : ISO9001/TS16949
    Price : negotiate
    Payment Terms : L/C, T/T,Paypal, Western Union
    Supply Ability : 5000 Pcs/Month
    Delivery Time : 3 days after confirmed
    • Product Details
    • Company Profile

    Single Row Tapered Roller Bearings NSK HR32207J For Machine Tool Spindles


    Single Row Tapered Roller Bearings NSK HR32207J Bearing is one kind of tapered roller bearing design . Its dimension is 35×72×24.25mm , weight is 0.5kg , the material are adopt high quality chrome steel , this design are separable. the bearing ring with the rollers and cage assembly can be separated from the other ring, so this kind of bearing are the same with single row cylindrical roller bearings.

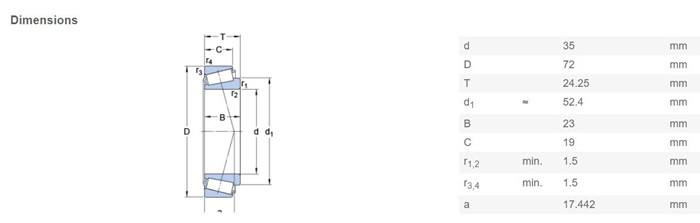

    The tapered roller bearing’s NSK HR32207J Bearing most important dimensions are:

    • The outside diameter of the outer ring, or cup, is known as the O.D. (D). The other basic dimension of this part is the cup width (C). Both are important for fitting the bearing onto the housing.

    • The inside diameter of the inner ring, or cone is called the bore (d). This diameter must be correct in order to fit the bearing onto the shaft. The other basic dimension of this part is the cone width (B).

    • When cup and cone are mated (including rollers and cage), the overall dimension is called the overall bearing width (T). Bearing components or assemblies must be in alignment.


    Taper Roller Bearing NSK HR32207J bearing

    Principal dimensions35×72×24.25mm
    Weight0.5kg
    Basic dynamic load rating-C81.2kN
    Basic static load rating-Co78kN
    Fatigue load limit-Pu8.5kN
    Reference speed8000 r/min
    Limiting speed9500 r/min

    NSK HR32207J bearing is Tapered roller bearing and commonly type and widely used in many application like the spindle of machine , it contains inner ring , outer ring , and steel cage,tapered roller bearing can carry radial and axial loads in both directions , NSK Taper roller bearings are particularly versatile and are simple in design , separable , NSK HR32207J bearing suitable for high and middle high capacity , but low cost maintenance . as one of the biggest top quality bearing brand , Quality can be approved by the market .



    OEM part numbers

    BrandOEM
    IVECO26800130
    MAN06 32499 0079
    MAN06 32499 0068
    MERCEDES BENZ319 981 0005
    RENAULT TRUCKS5000388284
    RENAULT TRUCKS5010241918
    SCANIA202635

    Crosses with other manufacturers

    ManufacturerPart number
    ISOT3DC035
    SwedenVKHB 2018
    SNRHDB033

    XRB is the China bearing manufacturer,exporter , supplier , it can supply NSK HR32207J bearing , Our large quantity Single Row Tapered Roller Bearings Stock can meet your need with good quality and fast delivery , Also you can find FAG 32207A Bearing , the other type and brand tapered roller bearing . just like KOYO , NTN , NKE , ZWZ , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order , also the transportation By AIR or By Sea , by Train are all avaiable . we asure we can ship high quality NSK HR32207J bearing to your office at the first time .
