    Single Direction Thrust Ball Bearing High Speed For Vertical Centrifuges Machine

    Ask Lasest Price
    Brand Name : NSK
    Model Number : 51109 Bearing
    Certification : ISO9001/TS16949
    Price : negotiate
    Payment Terms : L/C, T/T,Paypal, Western Union
    Supply Ability : 5000 Pcs/Month
    Delivery Time : 5 days after confirmed
    • Product Details
    • Company Profile

    Single Direction Thrust Ball Bearing High Speed For Vertical Centrifuges Machine

    Single Direction Thrust Ball Bearing 51109 Bearing 45×65×14mm Used In Vertical Centrifuges Machine


    Single Direction Thrust Ball Bearings 51109 Bearing is one kind of ball bearings design. Its dimension is 45×65×14mm,weight is 0.14kg , the material are adopt high quality chrome steel, thrust ball bearing consist of shaft washer , housing washer , rolling elements and cage assembly. so we can see that this kind of bearing have different with deep groove ball bearings and self-aligning ball bearings , angular contact ball bearings . they are all mainly carry axial loads .


    Thrust Ball Bearings koyo 51109 bearing

    Principal dimensions45×65×14mm
    Weight0.14kg
    Basic dynamic load rating-C26.5kN
    Basic static load rating-Co69.5kN
    Fatigue load limit-Pu2.55kN
    Reference speed4500 r/min
    Limiting speed6300 r/min

    Thrust Ball Bearing can be much more design


    Single Direction Thrust Ball Bearings

    Double Direction Thrust Ball Bearings

    Four contact Ball Bearings


    Bearing series

    TypeFlat back-face typeSpherical back-face typeWith aligning seat
    Single-direction511--
    512532532U
    513533533U
    514534534U
    29--
    39--
    O(*1)--
    TAM(*2)--
    TG(*2)--
    Double-direction522542542U
    523543543U
    524544544U

    Thrust ball bearings and four-point contact ball bearings are suitable for light or normal loads that are purely axial. Single direction thrust ball bearings can accommodate axial loads in one direction only . For axial
    loads acting in either direction , double direction thrust ball bearings are needed.

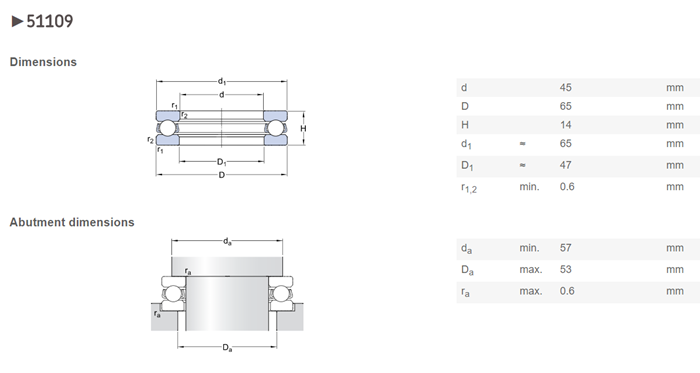

    Dimension of Single Direction Thrust Ball Bearings


    Application of KOYO Thrust Ball Bearing 51109


    1. Ball Thrust Bearings should use close to the radial bearing, in order to prevent the effect of shafts deflection.

    2. When using big size ball bearings on a horizontal shaft, preload should be implemented to prevent the clearance between housing washer and balls.

    3. Under the inevitable circumstances of shaft deflection and misalignment, aligning seat washer should be applied.


    XRB is the China bearing manufacturer , exporter , supplier , it can supply Single Direction Thrust Ball Bearings KOYO 51109 Bearing, Our large quantity thrust Ball Bearings can meet your need with good quality and fast delivery , Also you can find FAG 51109 Bearing , the other type and brand thrust Ball Bearings for Machine Screw Jack. just like NSK , FAG , NTN , NACHI , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we asure we can ship high quality thrust ball bearings to your office at the first time.
