Single Direction Thrust Ball Bearing KOYO 51113 Bearing 65×90×18mm Used In Lifting Jack

Single Direction Thrust Ball Bearing KOYO 51113 Bearing is one kind of ball bearings design. Its dimension is 65×90×18mm,weight is 0.33kg , the material are adopt high quality chrome steel, thrust ball bearing consist of shaft washer , housing washer , rolling elements and cage assembly. so we can see that this kind of bearing have different with deep groove ball bearings and self-aligning ball bearings , angular contact ball bearings . they are all mainly carry axial loads .

1. The design of Thrust Ball Bearing may not be subjected to any radial load. Thrust Ball Bearings are not suitable for high-speed rotation since lubricant is expelled by centrifugal force.

2. When used on a horizontal shaft, a minimum axial load must be applied.

3. Care must be taken in handling to prevent damage to the separable rings and ball assembly.

Thrust Ball Bearing can be much more design

Single Direction Thrust Ball Bearings

Double Direction Thrust Ball Bearings

Four contact Ball Bearings

Thrust ball bearings and four-point contact ball bearings are suitable for light or normal loads that are purely axial. Single direction thrust ball bearings can accommodate axial loads in one direction only . For axial loads acting in either direction , double direction thrust ball bearings are needed.

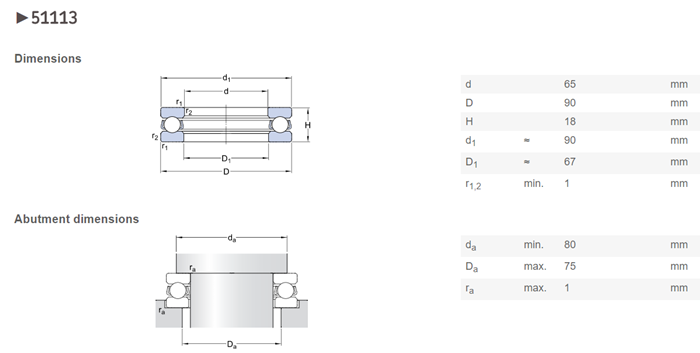

Dimension of Single Direction Thrust Ball Bearings

Feature of Double Direction Thrust Ball Bearing

· Carrying axial loads in both directions.

· This Bearing consists of 3 kinds of grooved washer bearing rings, 2 kinds of cage and ball assembly.

· Aligning seat washers with an aligning surface radius are also available for ease of design and mounting against a flat housing shoulder.

XRB is the China bearing manufacturer , exporter , supplier , it can supply Single Direction Thrust Ball Bearings koyo 51113 bearing , Our large quantity thrust Ball Bearings can meet your need with good quality and fast delivery , Also you can find FAG 51113 Bearing , the other type and brand thrust Ball Bearings for Machine Screw Jack. just like NSK , FAG , NTN , NACHI , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we asure we can ship high quality thrust ball bearings to your office at the first time.

Liaocheng Explorer Bearing Manufacturing Co.,Ltd , shorted name -- XRB Bearing. China bearings manufacturer and supplier , XRB focus on research & development and manufacturing general purpose and non-standard roller bearings , our products contains Insulated Bearing , Tapered Roller Bearings(inch & metric size) , Deep Groove ball bearing ,Sealed spherical roller bearings , Spherical roller thrust bearing , CARB toroidal roller bearings , Cylindrical roller bearings , Vibrating screen bearing , papermaking machinery bearing , concrete mixer truck bearing , excavator bearings , rolling mill bearing.
