    Heavy Duty Precision Car Wheel Bearing For Cranes And Hoists KOYO 32240JR

    Ask Lasest Price
    Brand Name : KOYO
    Model Number : 32240JR
    Certification : ISO9001/TS16949
    Price : negotiate
    Payment Terms : L/C, T/T,Paypal, Western Union
    Supply Ability : 500 Pcs/Month
    Delivery Time : 3 days after confirmed
    • Product Details
    • Company Profile

    Heavy Duty Precision Car Wheel Bearing For Cranes And Hoists KOYO 32240JR

    Taper Roller Bearing KOYO 32240JR Bearing 200×360×104mm Used In Cranes and Hoists


    Single Row Tapered Roller Bearings KOYO 32240JR Bearing is one kind of tapered roller bearing design . Its dimension is 200×360×104mm , weight is 43kg , the material are adopt high quality chrome steel , this design are separable. the bearing ring with the rollers and cage assembly can be separated from the other ring, so this kind of bearing are the same with single row cylindrical roller bearings.


    Tapered Roller Bearing KOYO 32240JR Bearing have tapered inner and outer ring raceways and tapered rollers , they are designed to accommodate combined loads , simultaneously acting radial and axial loads . The geometry and surface finish of the roller ends and the area on the flange that makes contact with the roller ends have been optimized to promote and maintain the formation of a lubricant film .


    Double row tapered roller bearings, composed of two interior sets housed in one outer ring, can withstand large radial and axial loads in both directions. They allow for rigid bearing arrangements and are suitable for bearing arrangements where rigid axial guidance is required. The double row tapered roller bearing design allows for space saving applications, and in many cases the bearing requires no maintenance since it is lubricated for life.


    XRB Produce three types of tapered roller axial bearings :

    1. Those designed for low speed and thrust loads
    2. For applications where a full rotation is not required
    3. Those designed for large thrust loads and high speeds

    Taper Roller Bearings also have the other different design as follows

    • Metric Single Row Taper Roller Bearing
    • Inch series Tapered Roller Bearing
    • Flanged side taper roller bearing
    • Special taper roller bearing
    • U type taper roller bearing
    • Steering Taper roller bearing
    • Interior taper roller bearing
    • Double Row taper roller bearing
    • Thrust taper roller bearing

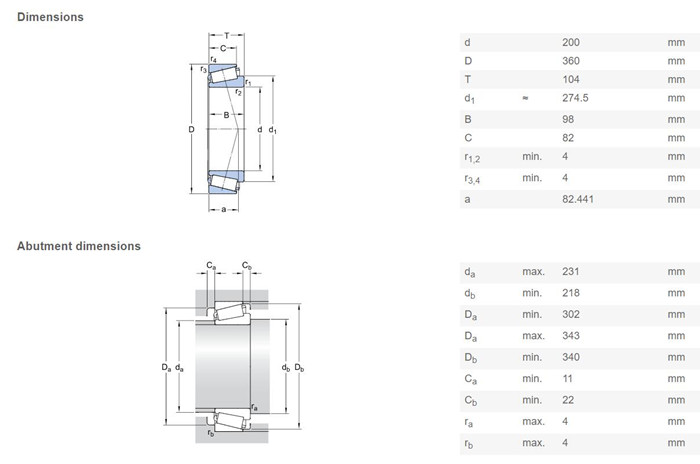

    Taper Roller Bearings KOYO 32240JR Bearing

    Principal dimensions200×360×104mm
    Weight43kg
    Basic dynamic load rating-C1300kN
    Basic static load rating-Co2000kN
    Fatigue load limit-Pu180kN
    Reference speed1300 r/min
    Limiting speed1700 r/min

    KOYO 32240JR bearing is Tapered roller bearing and commonly type and widely used in many application like the spindle of machine , it contains inner ring , outer ring , and steel cage,tapered roller bearing can carry radial and axial loads in both directions , KOYO Taper roller bearings are particularly versatile and are simple in design , separable , KOYO 32240JR bearing suitable for high and middle high capacity , but low cost maintenance . as one of the biggest top quality bearing brand , Quality can be approved by the market .



    Application Of Taper Roller Bearing KOYO 32240JR Bearing

    XRB is the China bearing manufacturer,exporter , supplier , it can supply KOYO 32240JR bearing , Our large quantity Single Row Tapered Roller Bearings Stock can meet your need with good quality and fast delivery , Also you can find NSK HR32240J Bearing , the other type and brand tapered roller bearing . just like FAG , NTN , NKE , ZWZ , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order , also the transportation By AIR or By Sea , by Train are all avaiable . we asure we can ship high quality KOYO 32240JR bearing to your office at the first time .
