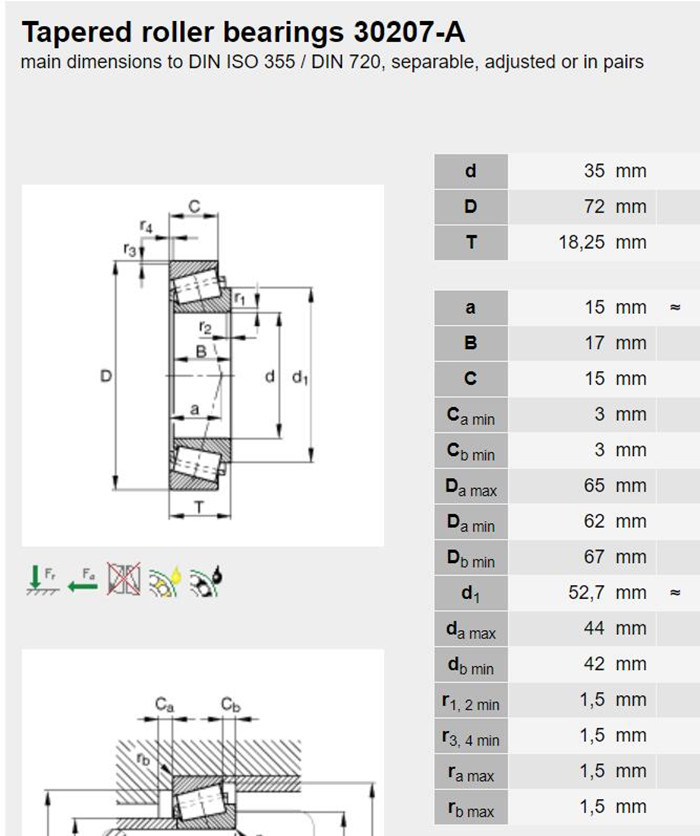

Single Row Taper Roller Bearing NSK HR30207J Bearing is one kind of tapered roller bearing design. Its dimension is 35×72×18.25mm,weight is 0.357kg, the material are adopt high quality chrome steel,this design are separable. the bearing ring with the rollers and cage assembly can be separated from the other ring, so this kind of bearing are the same with single row cylindrical roller bearings.

Taper roller bearings are designed to take combined heavy radial loads and heavy thrust loads in one direction while operating at moderate speeds. The bearings shown are single row with a cone and cup (inner and outer rings) and a pressed steel retainer . Metric tapers feature a simplified part number for a complete bearing . Inch tapers require a part number for the cup and one for the cone . The difference between the metric and inch tapers is only in the dimensions of measure for the bearings .

Tapered roller bearing NSK HR30207J Bearing is made of High quality chrome steel , pressed steel cage,and super grinding rollers,each inner ring and outer ring of NSK HR30207J Bearing can be interchange , so XRB (China bearing manufacturer) can produce very high quality NSK HR30207J Bearing for its customers,large stock and advance production for single row tapered roller Bearings can meet your demand for fast delivery and high quality , Tapered roller bearings can be used in heavy truck , more tapered roller truck bearing can be supply .

Taper Roller Bearings also have the other different design as follows

--Metric Single Row Taper Roller Bearings

--Inch Single Row Tapered Roller Bearings

--Double Row Taper Roller Bearings

--Four Row Taper Roller Bearings

--Hub bearing units for trucks

Design features Of Taper Roller Bearing

Taper roller bearing NSK HR30207J Bearing have tapered inner and outer ring raceways between which tapered rollers are arranged . The projection lines of all the tapered surfaces meet at a common point on the bearing axis . Their design makes taper roller bearings particularly suitable for the accommodation of combined (radial and axial) loads . The axial load carrying capacity of the bearings is largely determined by the contact angle . the higher the axial load carrying capacity . An indication of the angle size is given by the calculation factor e; the larger the value of e, the larger the contact angle and the greater the suitability of the bearing for carrying axial loads.

Application Of Taper Roller Bearing NSK HR30207J Bearing

XRB is the China bearing manufacturer , exporter , supplier , it can supply NSK HR30207J Bearing and complete series of tapered roller bearing , including inch tapered roller bearing , metric tapered roller bearing , flanged taper roller bearing , paired tapered roller bearing , sealed taper roller bearing , double row taper roller bearing , four-row taper roller bearing TIMKEN , FAG , NTN , NACHI , ZKL etc. are available .

We accepted DHL , FEDEX , TNT express for small order and samples order , also the transportation By AIR or By Sea , by Train are all available . we assure we can ship high quality taper roller bearing to your office at the first time .

Liaocheng Explorer Bearing Manufacturing Co.,Ltd , shorted name -- XRB Bearing. China bearings manufacturer and supplier , XRB focus on research & development and manufacturing general purpose and non-standard roller bearings , our products contains Insulated Bearing , Tapered Roller Bearings(inch & metric size) , Deep Groove ball bearing ,Sealed spherical roller bearings , Spherical roller thrust bearing , CARB toroidal roller bearings , Cylindrical roller bearings , Vibrating screen bearing , papermaking machinery bearing , concrete mixer truck bearing , excavator bearings , rolling mill bearing.
