    Angular Contact Thin Section Bearings Grease Lubrication KAA15AGO For Rotary Unions

    Ask Lasest Price
    Brand Name : Kaydon
    Model Number : KAA15AGO
    Certification : ISO9001/TS16949
    Price : negotiate
    Payment Terms : L/C, T/T,Paypal, Western Union
    Supply Ability : 200Pcs/Month
    Delivery Time : 5days after confirmed
    • Product Details
    • Company Profile

    Angular Contact Thin Section Bearings Grease Lubrication KAA15AGO For Rotary Unions

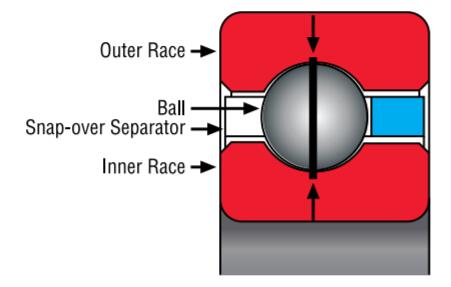

    Thin Section Bearings Kaydon KAA15AGO Bearings is one kind of ball Bearings design. this kinds of Ball Bearings consist of inner ring,outer ring,steel balls and brass cage , some design will be nylon cage or PEEK cage,Thin Section Bearing have open ,one-piece seals,double-side sealed design ,Kaydon thin section ball bearings KAA15AGO were developed to meet current engineer needs for thinner,lighter bearings. they are used extensively in automation and labor saving equipment,such as industrial robots.


    Angular contact ball bearings can match the optimum number of balls with a contact angle of 30 degrees , They support higher radial loads than deep groove ball bearings or four-point angular contact ball bearings . And can support the axial load from the same direction. For special applications, angular contact ball bearings can also be provided as matched bearings , Four-point contact ball bearings can support both axial and radial loads, so they operate in the same way as double-row angular contact ball bearings . Deep groove ball bearings can support both axial and radial loads in both directions .


    Thin Section Bearing Kaydon KAA15AGO Bearing

    Product OverviewValues
    KAYDON Part No.KAA15AGO
    TypeAngular Contact
    ClosuresOpen
    Bore (inches)1.5
    Outside (inches)1.875
    Cross Section3/16″ x 3/16″
    L1 (inches)1.64
    L2 (inches)1.735
    L3 (inches)1.774
    MaterialChrome steel
    Dynamic (lbs)681
    Static Thrust (lbs)1380
    Static Radial (lbs)480
    Weight (lbs)0.02

    Suffix of cage design of Kaydon Thin Section Bearing


    G Nylon one-piece molded ring with circular pockets - A

    H Phenolic laminate one-piece machined ring with circular pockets - A

    J Nylon molded strip with circular pockets - A

    K Phenolic laminate, riveted two-piece ring type - A, C, X

    Q PEEK, one-piece molded ring with circular pockets - A

    R Standard one-piece formed ring with circular pockets – A

    U Stainless steel, formed ring circular pockets type - A

    Y Brass, formed ring, circular pockets type - A

    F Full complement bearing - A, C, X

    S Helical coil spring - C, X

    Z Other (toroid ball spacers, spacer slugs, spacer ball or others available) - A, C, X


    Feather of Kaydon KAA15AGO Thin Section Bearings


    Thin Section ball bearings are part of the Kaydon thin section bearing assortment. As the name suggests, thin section bearings have very thin rings and very low cross section. They are further characterized by low weight, low friction and high stiffness. Thin section ball bearings are inch dimension bearings that have a constant cross section within a particular series irrespective of the bearing size. Kaydon fixed section bearings are available as either open or sealed


    Deep groove ball bearings


    • Angular contact ball bearings


    • Four-point contact ball bearings


    Application of Thin Section Bearing Kaydon KAA15AGO Bearing

    • Airplane
    • Radar and microwave devices
    • Precision robot joint
    • Battery array driver of solar power
    • Guidance system
    • Food processing plants
    • Glass production equipment and rotary worktable
    • Packing equipments
    • Medical Devices
    • Optical scanning device , radar
    • Satellite communications equipments
    • Textile machinery
    • Semiconductor manufacturing equipment

    XRB is the China bearing manufacturer,exporter, supplier, it can supply Kaydon KAA15AGO Bearing and full series kaydon thin section bearings , Our large quantity Thin Section Bearings can meet your need with good quality and fast delivery, Also you can find the other type and brand bearing, just like NSK , FAG , NTN , NKE , ZWZ , TIMKEN . We accepted DHL , FEDEX , TNT express for small order and samples order,also the transportation By AIR or By Sea,by Train are all avaiable.we asure we can ship high quality Thin Section Bearings Kaydon KAA15AGO Bearing to your office at the first time.
